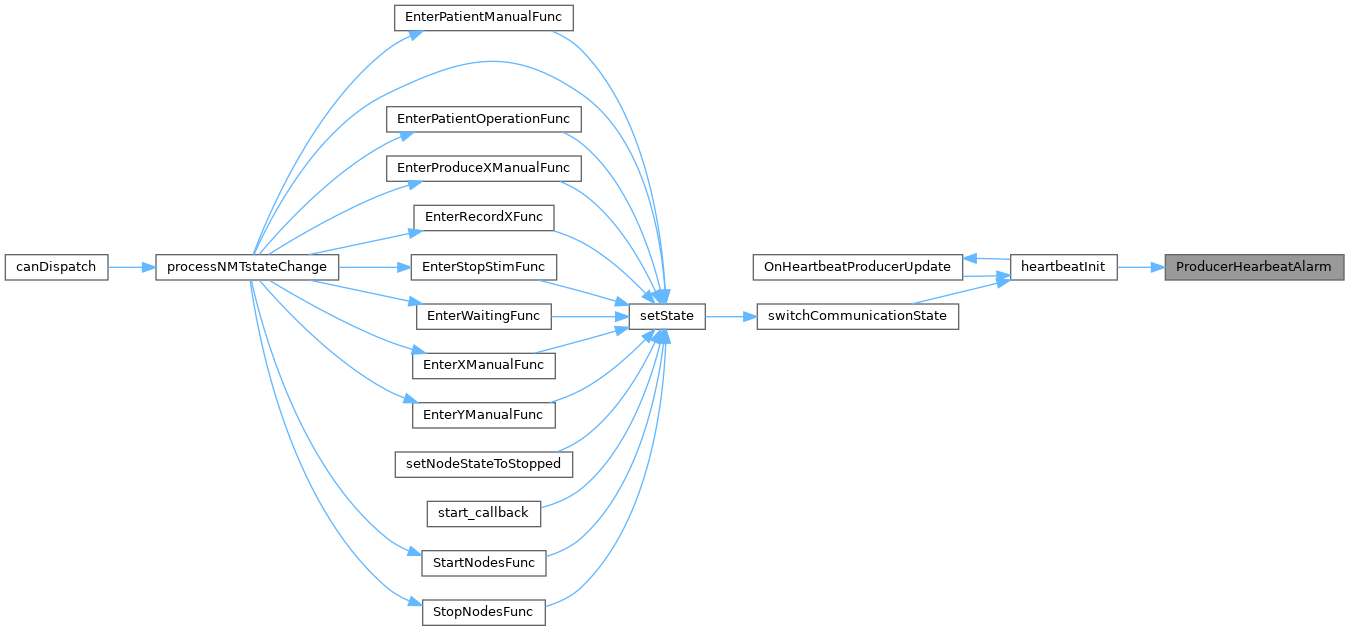

Collaboration diagram for Heartbeat:

Functions
void	processNODE_GUARD (CO_Data d, Message m)
	This function is responsible to process a canopen-message which seams to be an NMT Error Control Messages. At them moment we assume that every NMT error control message is a heartbeat message. If a BootUp message is detected, it will return the nodeId of the Slave who booted up.

void	ProducerHearbeatAlarm (CO_Data *d, UNS32 id)
	the Consumer Timer Callback. Heartbeat has been modified to include module Serial Number

UNS32	OnHeartbeatProducerUpdate (CO_Data d, const indextable unsused_indextable, UNS8 unsused_bSubindex)
	This is called when Index 0x1017 is updated.

void	heartbeatInit (CO_Data *d)
	Start heartbeat consumer and producer with respect to 0x1016 and 0x1017 object dictionary entries.

void	heartbeatStop (CO_Data *d)
	Stop heartbeat consumer and producer.

void	_heartbeatError (CO_Data *d, UNS8 heartbeatID)
	heartbeat Error

void	_post_SlaveBootup (CO_Data *d, UNS8 SlaveID)
	post slave bootup

Detailed Description

Function Documentation

◆ _heartbeatError()

void _heartbeatError	(	CO_Data *	d,
		UNS8	heartbeatID )

heartbeat Error

Parameters

*d	Pointer on a CAN object data structure
heartbeatID

Definition at line 236 of file lifegrd.c.

◆ _post_SlaveBootup()

void _post_SlaveBootup	(	CO_Data *	d,
		UNS8	SlaveID )

post slave bootup

Parameters

*d	Pointer on a CAN object data structure
SlaveID

Definition at line 244 of file lifegrd.c.

◆ heartbeatInit()

void heartbeatInit ( CO_Data * d )

Start heartbeat consumer and producer with respect to 0x1016 and 0x1017 object dictionary entries.

Parameters

*d	Pointer on a CAN object data structure

Definition at line 189 of file lifegrd.c.

Referenced by OnHeartbeatProducerUpdate(), and switchCommunicationState().

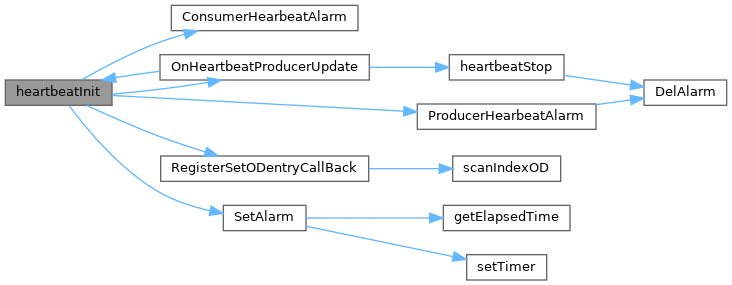

Here is the call graph for this function:

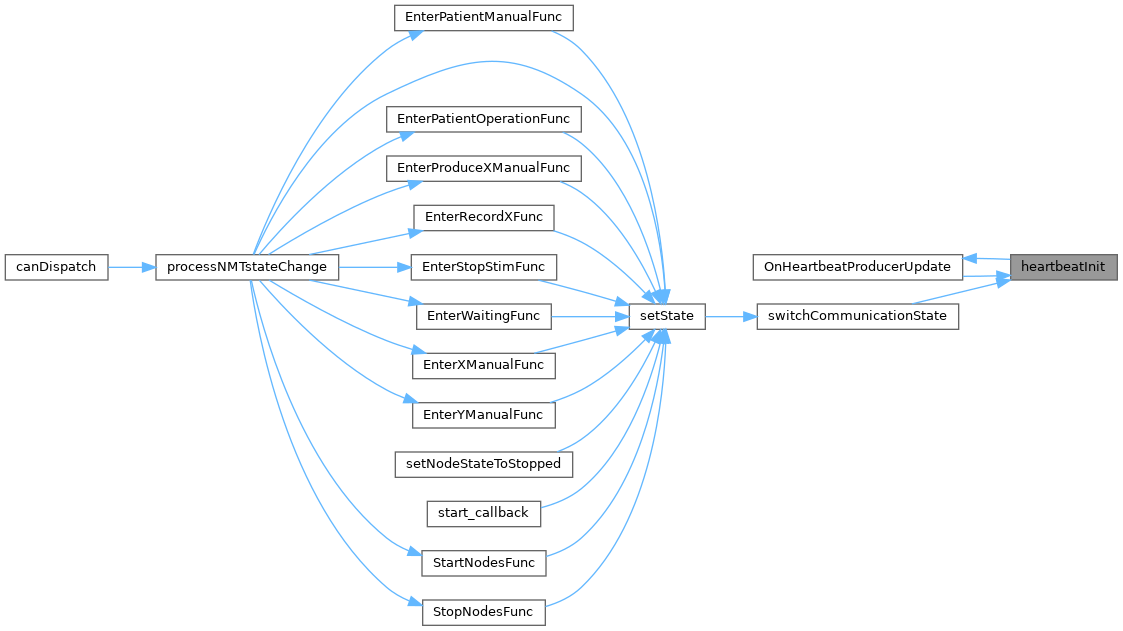

Here is the caller graph for this function:

◆ heartbeatStop()

void heartbeatStop ( CO_Data * d )

Stop heartbeat consumer and producer.

Parameters

*d	Pointer on a CAN object data structure

Definition at line 219 of file lifegrd.c.

Referenced by OnHeartbeatProducerUpdate(), and switchCommunicationState().

Here is the call graph for this function:

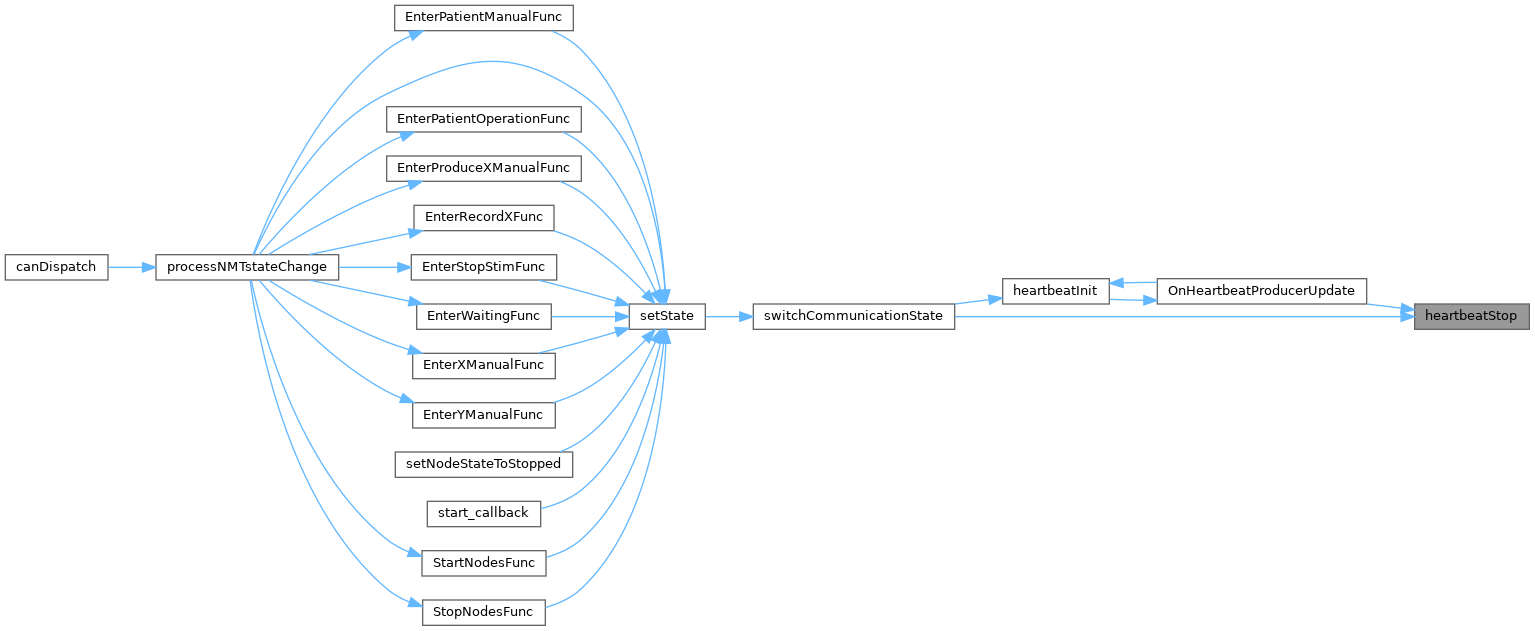

Here is the caller graph for this function:

◆ OnHeartbeatProducerUpdate()

UNS32 OnHeartbeatProducerUpdate	(	CO_Data *	d,
		const indextable *	unsused_indextable,
		UNS8	unsused_bSubindex )

This is called when Index 0x1017 is updated.

Parameters

*d	Pointer on a CAN object data structure
unsused_indextable
unsused_bSubindex

Returns

Definition at line 175 of file lifegrd.c.

Referenced by heartbeatInit().

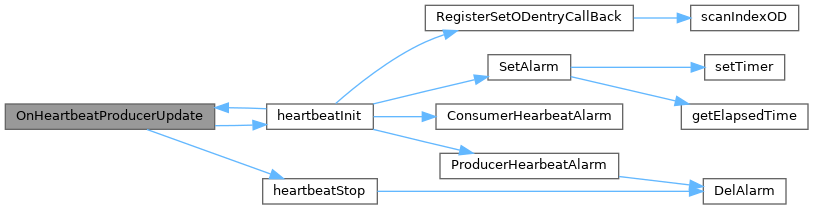

Here is the call graph for this function:

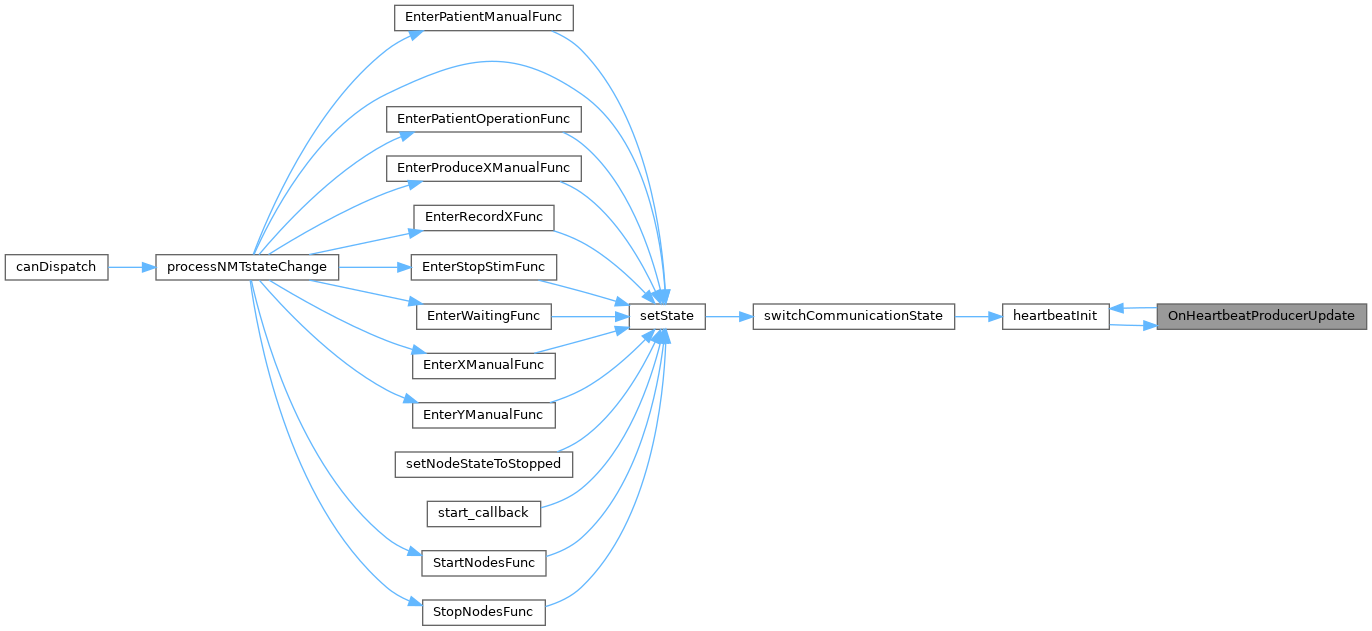

Here is the caller graph for this function:

◆ processNODE_GUARD()

void processNODE_GUARD	(	CO_Data *	d,
		Message *	m )

This function is responsible to process a canopen-message which seams to be an NMT Error Control Messages. At them moment we assume that every NMT error control message is a heartbeat message. If a BootUp message is detected, it will return the nodeId of the Slave who booted up.

Parameters

*d	Pointer on a CAN object data structure
*m	Pointer on the CAN-message which has to be analysed.

Note: This feature is not used by the NNP

Notice that only the master can have sent this node guarding request

Receiving a NMT NodeGuarding (request of the state by the master) Only answer to the NMT NodeGuarding request, the master is not checked (not implemented)

Definition at line 68 of file lifegrd.c.

Referenced by canDispatch().

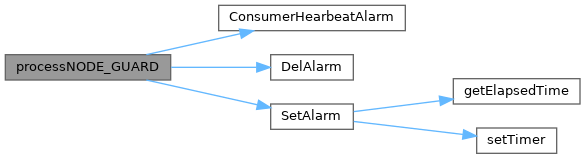

Here is the call graph for this function:
